Who organizes this workshop?

The Robotics & Automation Club at Thakur Shyamnarayan Engineering College (TSEC). Aurigen hosts this site. Aurigen is not the organizer.

How do I register on this website?

You do not. The college did not allow website registration. Teams already signed up through the Google Form. Find your team and BOT ID on the Builders page.

What hardware do we use?

ESP32-C3 expansion board, four servos on GPIO 0, 1, 3, 10 (no PCA9685), SH1106 OLED on GPIO 8/9 at 0x3C, buzzer on GPIO 4, a 3.7V Li-ion cell with holder, a slide switch, and optionally a 470µF capacitor on the servo rail.

What is the team size?

Minimum 1 member. Maximum 5 members per BOT ID.

Where do we find code?

Use the Code Library at /labs/esp32-walking-robot/. Hardware map first, then modules 01 through 11. BLE advertises as AlbertMini.

Robotics & Automation Club, TSEC

ESP32 Walking Robot

Name: ESP32 Walking Robot Workshop
Start: 2026-08-21T13:00:00+05:30
End: 2026-08-22T16:30:00+05:30
Location: Thakur Shyamnarayan Engineering College

Field guide for the two-day ESP32-C3 walking robot workshop. Teams already signed up through the college Google Form. Open this on your phone for schedule, BOT IDs, code, vlog submit, and social kit.

21-22 August 2026Teams of 1-5Build → Program → Debug → Customize → Compete

Robotics & Automation Club, TSEC organizes this workshop. Aurigen is not the organizer.

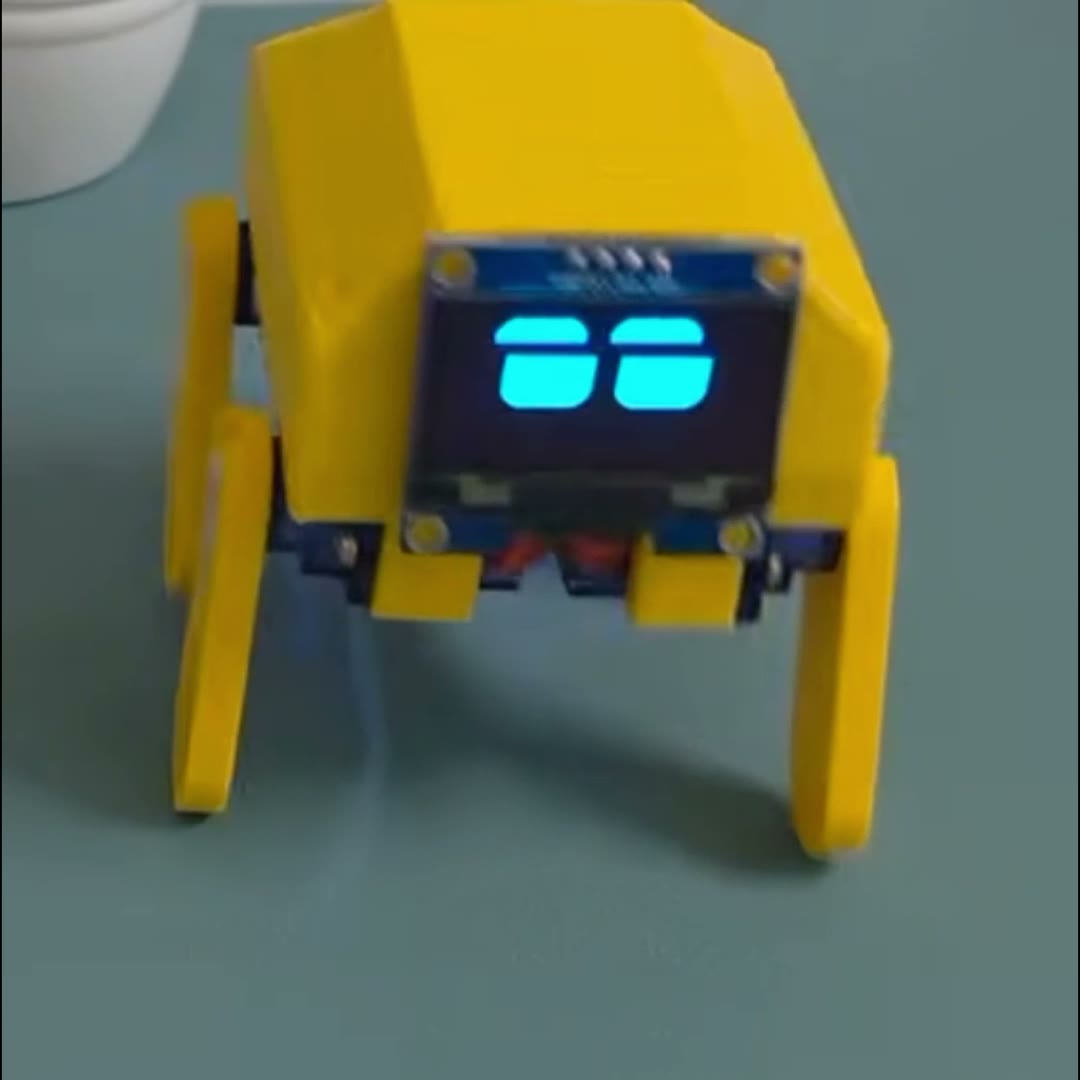

Yellow ESP32 walking robot with OLED face and four 3D-printed legs

Field guide

Open this during the workshop

Find your team

Search by team name. BOT-001 through BOT-014 are on the roster.

Code library

ESP32-C3 modules from first boot to AlbertMini BLE. Direct servo GPIO. No PCA9685.

Vlog challenge

Submit BUILD. FAIL. DEBUG. WALK. to the shared sheet.

Social kit

Story PNG and captions. Credit RAC TSEC.

Workshop Overview

Organized by the Robotics & Automation Club, TSEC. Aurigen hosts this site. Aurigen is not the organizer.

Over two days you build a walking robot from parts to first steps.

You wire the ESP32-C3, drive four servos directly (no PCA9685), light the SH1106 OLED, and ship working firmware.

This site does not take registrations. Find your team on the Builders page.

Hardware

The Robot

Four servos are driven directly by the ESP32-C3. No PCA9685. OLED is SH1106 on GPIO 8 and 9. Buzzer is GPIO 4. Keep power solid. Keep grounds common.

ESP32-C3

Controller and BLE brain. Advertises as AlbertMini. Servo signals attach to GPIO 0, 1, 3, and 10.

4 Servos

Direct PWM from the ESP32-C3. No PCA9685. GPIO is signal only. Power comes from the servo rail.

0.96" SH1106 OLED

128x64 I2C. SDA GPIO 8, SCL GPIO 9, address 0x3C. Not SSD1306.

Buzzer

GPIO 4. That pin is not a servo on this robot. Older pages that used GPIO 4 as a servo do not match this kit.

Power

3.7V Li-ion, holder, slide switch. Rails as on the expansion board. Optional 470µF for servo spikes. Spikes can drop BLE.

BLE

Real BLE UART-style RX. Phone sends WALK STOP CENTER LEFT RIGHT BACK REST BEEP. Serial is debug only.

• ESP32-C3 expansion board
• 4 servos driven directly by ESP32-C3 GPIO 0, 1, 3, 10
• 0.96" SH1106 OLED on GPIO 8/9 at 0x3C
• Buzzer on GPIO 4
• 1× 3.7V Li-ion cell + holder
• Slide switch
• Optional 470µF capacitor on the servo rail

Two days

Workshop Journey

Day 1 · 21 August 2026

1:00 PM to 5:30 PM

11:00 PMDiscover
21:45 PMAssemble
32:30 PMWire
43:15 PMFirst Boot
54:00 PMServo Test
64:45 PMOLED

Day 2 · 22 August 2026

9:30 AM to 4:30 PM

19:30 AMProgram
210:45 AMBLE
312:00 PMDebug
41:15 PMCustomize
52:30 PMToday's missions
63:30 PMRobot Arena

What participants build

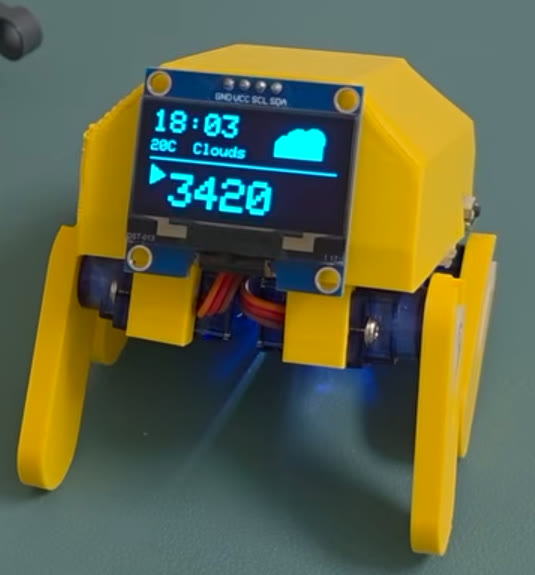

Close-up of a yellow ESP32 walking robot with OLED status screen and blue micro-servos

A take-home ESP32-C3 walking robot with OLED feedback and a path to BLE control.

You leave with working firmware, calibrated neutrals, and a robot that moves because you made it move.

During the workshop

Today's missions

Servo Challenge

Clean motion without jitter.

OLED Challenge

Give the robot a face and status UI.

BLE Challenge

Drive the robot from a phone.

Robot Personality

Make it feel alive.

Hack the Robot

Ship one bold custom feature.

Robot Arena

Compete with what you built.

Starts after the workshop. Personal tracker on your phone, not a global leaderboard. 7-Day Challenge

Ecosystem

Build showcase

Featured robots will appear here after the workshop.

Keep going

Your first robot is only the beginning

Keep going into AI, robotics, vision, embedded systems, and automation.

Autonomous roboticsComputer visionAI-controlled robotsSensorsVoice controlIoTAdvanced gait systems

FAQ

Who organizes this workshop?: The Robotics & Automation Club at Thakur Shyamnarayan Engineering College (TSEC). Aurigen hosts this site. Aurigen is not the organizer.
How do I register on this website?: You do not. The college did not allow website registration. Teams already signed up through the Google Form. Find your team and BOT ID on the Builders page.
What hardware do we use?: ESP32-C3 expansion board, four servos on GPIO 0, 1, 3, 10 (no PCA9685), SH1106 OLED on GPIO 8/9 at 0x3C, buzzer on GPIO 4, a 3.7V Li-ion cell with holder, a slide switch, and optionally a 470µF capacitor on the servo rail.
What is the team size?: Minimum 1 member. Maximum 5 members per BOT ID.
When is the workshop?: Day 1: 21 August 2026, 1:00 PM to 5:30 PM. Day 2: 22 August 2026, 9:30 AM to 4:30 PM.
Where do we find code?: Use the Code Library at /labs/esp32-walking-robot/. Hardware map first, then modules 01 through 11. BLE advertises as AlbertMini.
